Artemisia Naphta: A novel oil extract for sensitive and acne prone skin

Background: The plant Artemisia annua has been used in traditional Chinese medicine for many years. Rich in bioactive molecules, the A. annua plant is used to extract the anti-malaria compound artemisinin (< 1%), which results in most of the plant being unutilized. One byproduct of artemisinin extraction is artemisia naphtha (AN), which has yet to be studied extensively.

Aims: Study the activity of a novel AN oil extract against microbes, pro-inflammatory cytokines, and dermatological endpoints that are key for eczema and acne pathogenesis to determine if an effective A. annua extract for these skin conditions can be developed.

Methods: Gas chromatography-mass spectrometry was performed to determine the composition of AN oil. P. acnes, S. aureus, M. furfur, and C. albicans were cultured to determine minimal inhibitory concentration. in vitro studies utilizing keratinocytes and macrophages were treated with AN oil and gene expression measured by quantitative RT-PCR. A 13-subject clinical trial was performed with 1% AN oil Gel to assess its potential benefits for sensitive and acne prone skin.

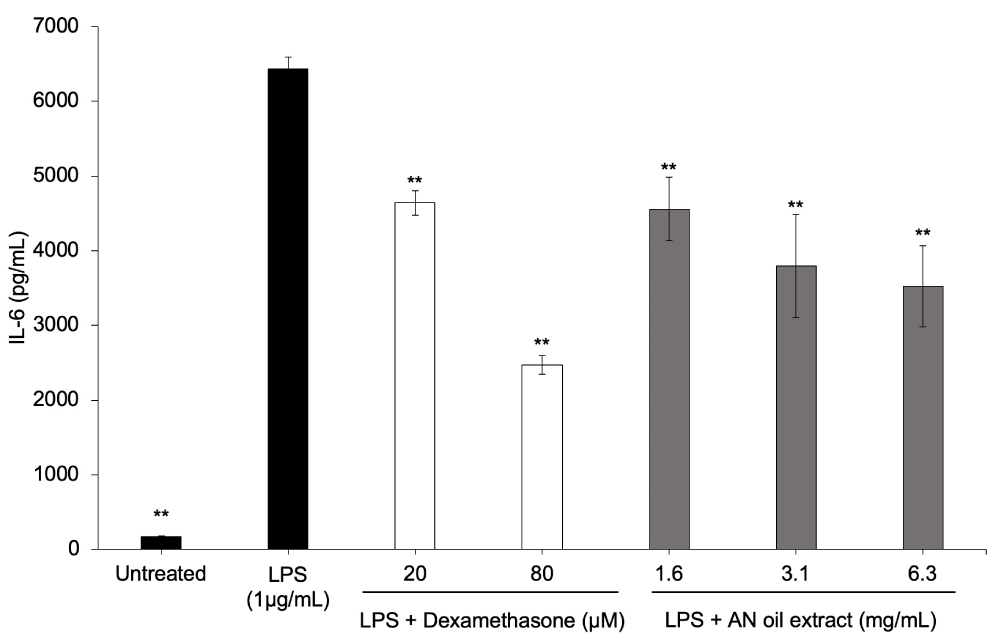

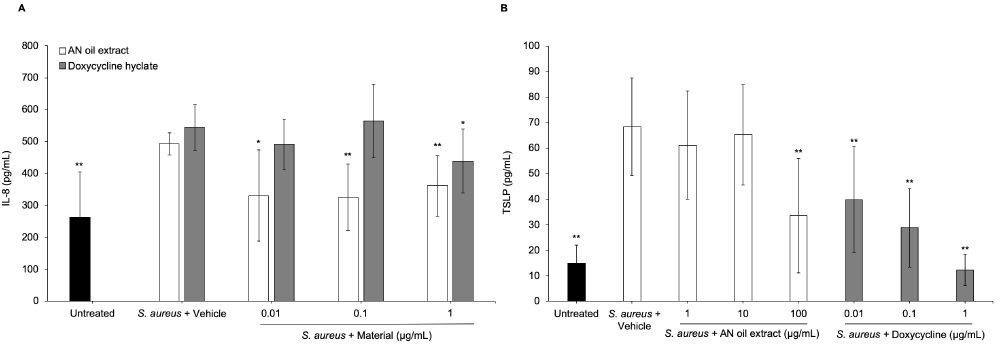

Results: AN oil upregulates filaggrin gene expression and possesses antimicrobial and anti-inflammatory activity inhibiting LPS, S. aureus and "Th2 induced" pro-inflammatory mediator release (IL-6, IL-8 and TSLP). Clinical assessment of 1% AN Gel shows it reduces acne blemishes and the appearance of redness.

Conclusion: Previously an underutilized and unpurified byproduct, AN is now the source to develop the first topical AN oil for cosmetic use with an activity profile that suggests it is effective for those with sensitive and/or acne prone skin.

Artemisia annua (A. annua) is an annual herb used in traditional Chinese medicine as a remedy for malaria and fever [1]. The anti-malarial activity is derived from artemisinin, which has also been shown to have anti-viral, anti-cancer, anti-fibrotic, anti-inflammatory, and anti-bacterial properties [2]. Artemisinin [3], its derivatives [4] and A. annua extracts rich in flavonoids [5] have also been shown to reduce inflammation and contact sensitization when applied topically to skin. Extraction of artemisinin from A. annua yields only small amounts of the bioactive molecule (~0.1 to 0.7%) [6], resulting in much of the A. annua extract and many of its other bioactive molecules [2] going unused. A recent report shows that A. annua extracts reduce redness, inflammation and improve skin barrier repair [7]. Due to Chinese regulations banning the use of artemisinin in cosmetics, we sought to develop a novel topical A. annua extract from current artemisinin extract byproducts that would work to simultaneously improve the extraction’s environmental footprint, and potentially provide several benefits to the skin.

One byproduct from artemisinin extraction from A. annua powder is artemisia naphtha (AN). To date, research on AN has been limited as compared to other A. annua extracts. One report demonstrates that it is composed of several phenolics and terpenes, resulting in antimicrobial activity [8]. As noted previously, A. annua extracts have shown promise in promoting healthy skin. The novel AN oil described here is purified by rectification to obtain high boiling point components (> 90 °C). Thus, when compared to the more common and well-studied water extracts of A. annua, this AN oil extract is more lipophilic suggesting its bioactive molecules will penetrate the skin more effectively. Moreover, A. annua water extracts contain chlorophyll, making it difficult to remove its color which serves as an impediment for topical formulation development. Conversely, AN oil extract, given the elevated process temperatures, contains significantly less impurities, consistent batch to batch quality and its light-yellow color makes it more amenable to be used in many different formulation types.

Here, we demonstrate for the first time that this new AN oil extract has a broad range of anti-inflammatory properties, reducing pro-inflammatory cytokines such as IL-6, IL-8 and thymic stromal lymphopoietin (TSLP), a key marker for itch. Moreover, we show AN oil extract upregulates filaggrin, a key protein in epidermal differentiation and expand our understanding of its antimicrobial activity, as it inhibits the growth of several microbes including C. acnes and S. aureus which play a critical role in the pathogenesis of acne and eczema. We characterize the composition of AN oil extract, reporting its most abundant bioactive molecules are of camphor, camphene, p-cymene, eucolyptol and D-limonene. Lastly, clinical results in human subjects demonstrate AN oil formulated at 1% in a gel and applied topically is well tolerated and effective in reducing blemishes and the appearance of redness in acne prone skin.

Reagents

All chemicals were obtained from Sigma-Aldrich Co. (St. Louis, MO) and ThermoFisher (Waltham, MA). Artemisia naphta (AN) oil extract was provided by KPC Pharmaceuticals, Inc.

Artemisia naphta oil extraction

A. annua leaves were heated with petroleum ether and resulting AN oil was filtered. Leaching solution was heated and evaporated to remove the petroleum ether. AN oil was distilled at 100-110 °C and then drained to obtain crude AN oil. Crude product of AN oil was placed in a refining tank, heated to 110 °C for 30 min and then cooled down. Silica gel was added to the oil, stirred for 30 minutes and then filtered to decolorize the AN oil extract.

GC-MS analysis

One gram sample of AN oil extract was diluted with ethanol to 10% for GCMS analysis. Separation was performed on an Agilent HP-5MS column (30 m* 0.25 mm*0.25 µM) at a flow rate of 1 mL/min, split ratio (20:1), eluant gas (He > 99.9%), with a temperature program of 60°, 230°, 240°, 280 °C.

Electron ionization (ionization energy = 70eV) was utilized with a scan range of 29-550 amu, solvent delay 2 min and MS temperature of 230 °C for source and 150 °C for quadrupole. The total ion flow diagram of the sample was obtained and identified the various components. The relative content of each component in the sample was determined by peak area normalization.

Antimicrobial assays

All antimicrobial testing was performed by third party organizations – Hozan Laboratories and Guangdong Biocell Biotechnology (Shanghai, China). In short, Cutibacterium acnes strain (CICC 10312) was cultured in Brain Heart Infusion Agar (BHIA) under anaerobic conditions. AN oil extract was added to BHIA with final concentrations ranging from 0.1-50 mg/mL. A fixed 1 µl of bacterial suspension was spread on agar plates and incubated for 48-72 hours at 37 °C. Malassezia furfur (ATCC^® 44344^TM) was cultured in media under anaerobic conditions. AN oil extract was added to media with final concentrations ranging from 0.5-200 mg/mL. A fixed 1 µl of bacterial suspension was spread on agar plates and incubated for 48-72 hours at 37 °C. After incubation, plates were placed on a black, non-reflective background to read results. Staphylococcus aureus (ATCC^® 6538^TM) and Candida albicans (ATCC^® 10231^TM) was cultured in Nutrient Broth under aerobic conditions. AN oil extract was added to media with final concentrations ranging from 2.5-400 mg/mL. A fixed 100 µl of bacterial suspension was spread on agar plates and incubated for 48 hours at 37 °C. For all strains tested, bacterial suspension was prepared with a concentration of 1 x 10⁸ CFU/mL~2 x 10⁸ CFU/mL as the initial inoculum. Minimum inhibitory concentration was defined as the lowest concentration which inhibited visible growth of bacteria.

Cell culture

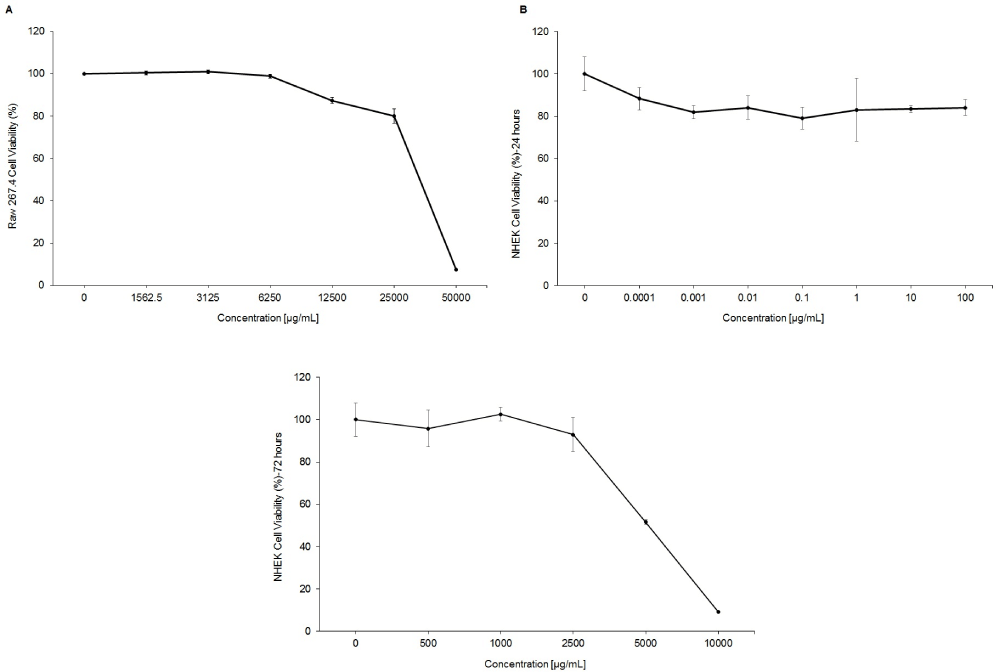

All in vitro cell work was performed by Shanghai Archgene Biotechnology Co. (China) and Signum Biosciences (USA). In short, Raw 264.7 mouse macrophage were purchased from the Cell Bank, Chinese Academy of Sciences (Cat. tCM13). Raw 264.7 macrophages were maintained in DMEM containing 10% FBS at 37 °C with 5% CO₂. When cells reached 90% confluence, cells were seeded in 96-well plate at a density of 8x105 per mL. After 8 hours, cells were treated by different concentrations of samples and incubated for 24 hours. The cells were randomly divided into different groups and co-treated with LPS (1 μg/mL) and test materials based on maximum non-toxic concentrations determined by CCK-8 kit (Sigma-Aldrich Co, St. Louis, MO). Dexamethasone (20 μM or 80 μM) was used as positive anti-inflammatory control. After 72 hours, cell supernatants were collected for IL-6 ELISA measurements (eBioscience, San Diego, CA). Normal human epidermal keratinocytes (NHEKs) from neonatal donors were purchased from ThermoFisher (Waltham, MA) and cultured in vitro in EpiLife® medium supplemented with HKGS at normal cell culture conditions (37 °C, 95% v/v air, 5% v/v CO₂) and randomly separated into treatment groups based on maximum non-toxic concentration determined by MTS kit (Promega, Madison, WI). After 48 hours, test and control materials were pre-treated in cell culture media and incubated for 1 hour at standard culture conditions (37 °C and 5% CO₂). Later, treatment media was replaced with live S. aureus (ATCC^® 29213^TM; 1 x 10⁷ CFU/mL) in fresh EpiLife^® medium with test materials and incubated for 24 hours. After incubation, culture medium supernatants were harvested and used to measure IL-8 (BD Biosciences, San Jose, CA) and TSLP (R&D Systems, Minneapolis, MN) levels by ELISA. NHEKs were treated with IL-4/IL-13 (30 ng/mL) with or without samples for 72 hours based on maximum non-toxic concentration and cell supernatants were collected to measure IL-8 by ELISA.

Gene expression

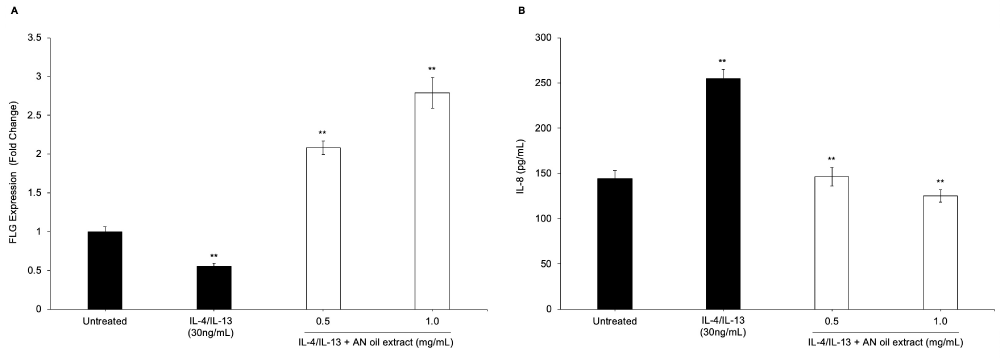

Primary human keratinocytes were co-treated with samples and IL-4 and IL-13 (30 ng/mL) for 72 hours. Supernatant was discarded and cells were washed and collected for total RNA extraction. RNA was reverse transcripted to cDNA and FLG gene expression was measured by qRT-PCR. The data was analyzed by 2^-ΔΔCt approach.

Clinical study

A clinical trial in healthy volunteers was conducted at Shanghai Kunyao Biotechnology Co, Ltd (China). This was a single-blinded study, with 13 subjects, age range from 18 to 40 years, all with acne prone skin (inflammatory dermatitis, including papules and pustules). The study was conducted according to the principles of Good Clinical Practice and followed the ethical principles of the Declaration of Helsinki. The study protocol was approved by the ethical review board of Shanghai Chicmax Cosmetic Co (IRB). Subjects reported to the testing facility for baseline screening at which time Informed Consent was obtained. All subjects completed and signed documentation stating, “commitment to voluntarily participate in the human trial test of cosmetics and to participate in the human trial period. Subjects used 1% AN Gel (ad libitum) for 2 weeks applying it to blemishes on the face and skin parameters were collected by non-invasive skin tester, including VISIA®-CR (Canfield Scientific, Fairfield, NJ) facial imaging and consumer self-assessment questionnaire at baseline, day 3, day 7 and day 14. Clinical trials were performed in compliance with the Clinical Trial Scheme, ICH guidelines on Quality Management Practices of Clinical Trials and all applicable laws and regulations.

Statistical analysis

For gene and protein expression analysis, samples were assayed in triplicate. Statistical significance was determined by Student’s t-test comparisons test using p - values less than 0.05 as significant difference. For the Clinical study, the paired one–way ANOVA was used to assess within-subject improvements over baseline.

Characterization of Artemisia naphtha (AN) oil extract chemical composition

The typical extraction process of artemisinin from A. annua powder results in non-volatile compounds (including artemisinin) and byproduct volatile components such as AN. AN is mainly composed of terpenoid and phenolic hydroxyl functional groups such as eucalyptol, terpinen-4-ol, α-terpinyl propionate and β-pinene [8]. Using this AN byproduct as a starting point, distillation and rectification steps are then performed at 110 °C, followed by decolorization yielding a novel, purified AN oil extract. Utilizing GC-MS analysis, the chemical composition of our novel AN oil extract was characterized. We identified eucalyptol as a major component present at similar levels in both AN (5.2%) [8] and our AN oil extract (5.6%, Table 1). Eucalytpol (also referred to as 1,8-cineole) has a mint-like scent and in addition to its antibacterial activity it is also a strong skin penetration enhancer [9]. The most abundant compound found in AN oil extract is camphor (23.7%, Table 1), a terpenoid which has been reported to provide several benefits to skin including wound healing properties and anti-wrinkle activity [10]. Camphene (aka as β-pinene) and p-cymene are two additional terpenes present at 16.2% and 13.9% respectively in AN oil extract. Both those compounds have been previously shown to possess a wide range of activities including antioxidant, anti-inflammatory, pain relief [11], anti-bacterial and anti-fungal properties [12]. Moreover, with their antimicrobial activity, camphene and p-cymene are found in many different commercial essential oils used to treat skin diseases including eczema and acne [13]. Several other compounds that promote skin health were also identified in our AN oil extract and are listed in yable 1.

AN oil extract possesses antibacterial activity

It has been previously demonstrated that A. annua extracts [2] and artemisia naphtha (AN) [8] possess antimicrobial activity against several microbes including C. acnes and S. aureus which play key roles in the pathogenesis of acne and atopic dermatitis [14,15]. Moreover, A. annua extracts have also been shown to have strong anti-fungal activity [16]. To investigate AN oil extract’s potential antibacterial and anti-fungal properties, we tested for its minimal inhibitory concentration (MIC) versus the previously mentioned skin bacteria, C. acnes and S. aureus, as well as two fungi found on skin - Malassezia furfur and Candida albicans. AN oil extract demonstrated antibacterial activity against both C. acnes and S. aureus, with MIC values of 10 mg/ml and 5.6 mg/ml respectively (Table 2). Similarly, AN oil extract also exhibited anti-fungal properties inhibiting M. furfur (MIC = 5 mg/ml) and C. albicans (MIC = 10 mg/ml). 4-Terpineol, commonly found in tee tree oil and known as an antimicrobial compound, was utilized as a positive control and was effective (Table 2).

We demonstrate in this study that AN oil, an extract of artemisia naphtha, which is normally disregarded when processing A. annua for artemisinin, provides several benefits to skin. Based on the data presented here, this can best be explained by the chemical composition of this novel AN oil extract. Via GC-MS analysis we identified AN oil extract contains several terpenes including its three most abundant compounds, camphor (~24%), Camphene (aka as β-pinene) (~16%) and p-cymene (~14%), all of which have been previously reported to possess skin protecting properties such as wound healing, anti-aging, anti-oxidant and anti-inflammatory properties [10,11]. The unique blend of skin actives identified in AN oil extract are potentially more effective when applied topically to skin given the presence of eucalyptol (~6%), which is a known penetration enhancer [9]. Eucalyptol may help drive AN oil extract’s bioactive molecules into the skin and maximize AN oil extract’s effectiveness. Altogether, producing this AN oil extract from material that was previously a byproduct provides a “win-win” scenario where we reduce the environmental footprint of artemisinin extraction from A. annua and develop an effective oil extract for skin.

Artemisinin has been studied extensively given its pharmaceutical applications, however it is currently banned in China for use as a cosmetic ingredient, as it is a pharmaceutical agent used to treat disease. However, the plant A. annua is a commonly used Traditional Chinese Medicine and approved for cosmetic use. To this end, the use of A. annua extracts have recently started to emerge in cosmetic products. In a study published this past year, Yu, et al. demonstrate that A. annua extract in a human clinical trial increases hydration, and reduces both transepidermal water loss (TEWL) and inflammation, signaling effectiveness for sensitive skin [7]. Building on these encouraging results and the goal to make use of a rarely used byproduct to utilize the many bioactive molecules present in A. annua, we sought to develop the first artemisinin-free A. annua extract for cosmetic use. From a manufacturing and formulation perspective, current A. annua water extracts present a couple challenges that are difficult to overcome. First, they contain chlorophyll, making its color difficult to remove and limiting its ability to be used in a wide range of formulation types. Conversely, AN oil extract’s light-yellow color is much more amenable to a variety of formulation types including white creams and face masks. Moreover, the process of making AN oil yields an extract with higher purity and less batch-to-batch variability than A. annua water extracts. Here we demonstrate for the first time, the use of a novel artemisia naphta derived oil extract when applied topically is effective in reducing blemishes and redness in acne prone skin (Figure 4, Table 3). This proof-of-concept clinical study demonstrates that AN oil extract formulated at 1% in a gel is not only well-tolerated, but effective. Moreover, after 7 days, 62% of subjects reported a reduction in pain and itch, suggesting this effect could be due in part to inhibition of TSLP, as shown in Figure 2b. AN oil extract’s encouraging in vitro profile demonstrating antimicrobial properties (Table 2) paired with anti-inflammatory activity against TLR4, S. aureus and Th2 response, suggests AN oil extract may have several applications in skin care including ameliorating acne and sensitive skin. This was also observed in the proof-of-concept clinical study where utilizing RBX^®imaging to visualize inflammation, we see a reduction of red area map images, suggesting AN oil extract’s anti-inflammatory properties are effective when applied topically. AN oil extract’s potential skin protecting properties are further buttressed by the in vitro data presented here showing it may also be able to promote healthy skin barrier function by upregulating filaggrin (Figure 3a). Our next goals are to investigate further the role AN oil extract plays in modulating TLR signaling, how it compares in activity to artemisinin and to run vehicle-controlled clinicals to study its potential benefits in subjects with sensitive and acne prone skin.

We demonstrate here the utilization of an A. annua extraction byproduct as a source, and subsequent discovery of a novel AN oil extract that is enriched for numerous terpenes that provide several benefits to the skin. AN oil extract possesses antimicrobial activity against several microorganisms including C. acnes and S. aureus, which are both implicated in acne and eczema. Moreover, AN oil extract is shown to block TLR4, S. aureus, and IL-4/IL-13 induced inflammation and upregulate filaggrin, all which have been previously shown to be critical in acne and eczema pathogenesis. Lastly, in a human clinical study, topical application of a 1% AN Gel, is reported to reduce blemishes and redness in subjects. Altogether the in vitro and clinical data presented here suggest AN oil extract will be effective for those with sensitive and/or acne prone skin.
